Ricoh Pro C5400S

February 3, 2026By admin

Ricoh Pro C5400S/Pro 5410S

Precision production color in a small footprint

Reliable workflow technology meets robust color and finishing options, and with a compact footprint, in the RICOH Pro C5400S/C5410S. Superb quality and consistent performance make it ideal for in-plants, marketing agencies, commercial printers, franchise/pay-for-print environments, and general office environments. Presentations will come to life with stunning color as you impress your customers with professional quality finishing.

Up to 13×51″

80 PPM / 65 PPM

Color MFD

8,500 Paper Capacity

Request Quote
Download Brochure

Product Highlights

Expand your creativity with flexible media handling
Produce more applications with extended media capabilities. Create vivid posters, business cards, or personalized direct mail all on one digital press. Print on a variety of substrates including bond, coated, textured, carbonless, or synthetic stocks for limitless creative opportunities.

Superior quality for impressive outputs
Eco-conscious toner paired with unmatched image technology will produce beautiful, high-value production print quality every time. Experience crisp lines, vivid color and an attention to detail with the 2400 x 4800 dpi laser resolution. Clients can rely on consistent, high-quality output from the first print to the last.

Maximize uptime. Maximize results
Complete tasks quickly and easily with the user-friendly 10.1” Android™-based Smart Operation Panel (SOP). Get up-and-running faster with the shorter 30-second standard warm-up time so you can get your ideas flowing before you finish your first cup of coffee. Create professional-grade output without compromising on precious office space.

Expanded finishing for a faster ROI
Automate and streamline finishing with inline options for saddle stitching, square folding, stacking, punching, multi-folding, and more. The RICOH Pro C5400S Series helps you eliminate bottlenecks in your workflow and reduces the need for manual intervention, enhancing efficiency and accelerating time to market.

Security features to meet compliance requirements
The Pro C5400S/C5410S comes loaded with robust security features to keep you and your data protected. User authentication and data encryption keep data safe while Data Overwrite Security System (DOSS) and Standard HDD Encryption help safeguard hard-drive data even after system end-of-life. Secured Print keeps confidential information in the right hands, allowing users to print only when at the device.

A controller that powers your workflow
Optimize your print operation with your choice of two Fiery® controllers built on the secured FS-600 platform. The embedded-type Fiery E-28B provides robust job and color management, while the server-based Fiery E-48B provides even more power for a higher level of performance and control over job processing — from make-ready to delivery.

Specifications

Print/Copy Process 4 drum dry electrostatic transfer system with internal transfer belt
Fusing Oil-less belt fusing method
Document Feeder Type 220 sheets (81.4gsm)/250 sheets (64-68gsm) ADF with single-pass color
Duplex scanning at up to 300 ipm
Control Panel 10.1″ AndroidⓇ-based Smart Operation Panel
Copy Resolution 600 dpi
Print Resolution VCSEL*: 2400 x 4800 dpi
Print: 1200 x 4800 dpi
Copy: 600dpi (scan), 2400 x 4800 dpi (copy output)
Scan: 600dpi/ 1200 dpi for network TWAIN scan
*Vertical Cavity Surface Emitting Laser
Scan Resolution 600 dpi
Output Speed Pro C5410S (Letter):
80 ppm (52.3 – 256 gsm)
56 ppm (256.1 – 360 gsm)
Pro C5400S (Letter):
65 ppm (52.3 – 256 gsm)
50 ppm (256.1 – 360 gsm)
Paper Capacity Paper Capacity:
Tray 1: 2,500 sheets (1,250 x 2)
Trays 2 – 3: 550 x 2 Bypass Tray: 250 sheets
Total Std Paper Capacity: 3,850 sheets
Total Max Paper Capacity: 8,500 sheets
Paper Size Tray 1: 8.5″ × 11″
Trays 2 – 3: 3.94″ × 5.5″ to 13″ × 19.2″
Bypass: 3.94″ × 5.5″ to 13″ × 51.18″, Envelopes
Paper Weight Trays 1 – 3: 14 lb. Bond – 110 lb. Cover (52.3 – 300 gsm)
Bypass Tray: 14 lb. Bond – 130 lb. Cover (52.3 – 360 gsm)
Auto Duplex: 14 lb. Bond – 130 lb. Cover (52.3 – 360 gsm)
Max Monthly Volume 150K
Power Requirements 208 – 240V, 16A, 60 Hz (dedicated)
Maximum Power Consumption Less than 3,840 W
Typical Electricity Consumption TEC Pro C5400s: 5.811kWh/wk
Pro C5410s: 7.323kWh/wk
Dimensions W x D x H 31.46″ × 34.65″ × 64.88″ (incl. ADF and Status Light Pole)
Weight Less than 606.3 lbs. (275 kg)

Print Support

Fiery® Color Controller E-48B
Version Fiery® FS600 Pro
Memory 8GB RAM (upgradable to 32GB)
CPU Intel i3-12100 processor
Storage 240/256 GB NVMe SSD + 1TB HD SATA
Operating System Windows 10 IoT Enterprise 2021 LTSC

Fiery® Color Controller E-28B
Version Fiery® FS600
Memory 8GB RAM (upgradable to 32GB)
CPU Intel G7400E
Storage 500 GB NVMe SSD
Operating System Linux

Cloud Solutions

RICOH Smart Integration Solutions Get your files to the right place, in the right format, with the right file name with document management workflow software. Compatible with Microsoft 365 SharePoint and OneDrive or Google Drive.
XM fax Secure, convenient digital fax from mobile, desktop or MFP
Read more

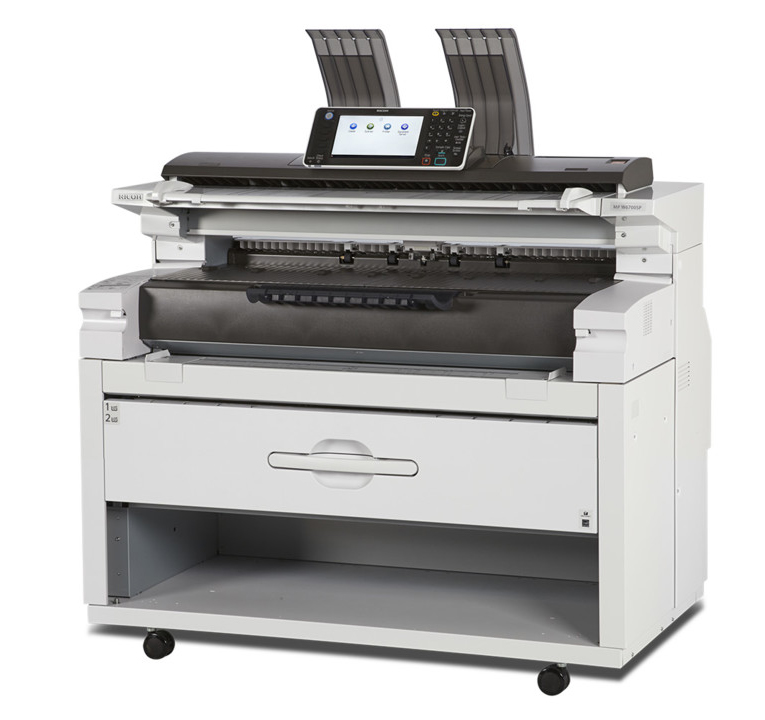

Ricoh MP W6700SP

February 3, 2026By admin

Ricoh MP W6700SP

Meet your wide-format needs affordably and intelligently

Compact and ergonomically designed, the MP W6700SP is easy to operate. Ideal for low to mid-volume workflows, this large-format plotter offers:

  • Detailed 600 dpi image quality
  • Simplified document sharing
  • Built-in security features
  • Remote management capabilities
Request Quote
Download Brochure

Product Highlights

Keep projects on time and on budget
Print, capture and share the wide-format documents that keep your organization moving forward. From CAD drawings to engineering maps, the MP W6700SP is designed to help today’s architectural, engineering and construction (AEC) firms, manufacturers and government organizations stay on track.

More ways to help teams stay productive
There’s no need to house and maintain multiple devices to support better communication. The MP W6700SP large-format printer offers full print, copy, scan and distribution functionality in a compact footprint. Get information exactly where it needs to go to speed collaboration and ensure deadlines are met.

Secure, efficient user-friendly performance
With intuitive controls and environmentally-friendly operation, the MP W6700SP wide format printer is designed to make it easy to produce affordable, efficient and secure wide-format documents in-house.

Specifications

Copying/Printing Process Electro-photographic printing
Paper Source 2 roll paper feeder
Warm-Up Time Less than 120 Seconds
First Copy 19 seconds (D-size)
Resolution 600 dpi x 600 dpi
Grayscale Printing 2 levels
Zoom 25% to 400% by 0.1% increments
Cutting Method Synchronized, preset size, variable
Hard Disk Drive 320 GB (shared with copier/printer/scanner)
Original Paper Weight 14 – 28 lbs
Output Paper Weight 52.3 – 110 gsm (Paper Roll)
Maximum Thickness .04″ (1 mm)
Copying Speed 6.7ppm (D-size)
Power Source 120 V, 20A (max), 60 Hz
Max Power Consumption 1.44 kW per hour
Dimensions WxDxH 49.2″ x 29.7″ x 47.8″ (1,250 x 755 x 1,215 mm)
Weight 507 lbs. (230 kg)
Copier Features Copy Modes (Text mode, Text/Photo mode, Photo mode, Drawing mode, Generation Text mode, Generation Photo mode, Pasted Original mode, Background Line mode, Highlighter mode), Auto Paper Select (APS), Auto Replace/Enlargement, Auto Reduce/Enlargement, User Auto Reduce/Enlargement, Preset Reduce/Enlargement, Zoom, Size Magnification, Directional Magnification (percent and mm/inch), Fine Magnification, Image Overlay, Format Overlay, Negative/Positive, Mirroring, Double Copy, Repeat Copy, Sample Copy, Combine Images, Format Overlay, Negative/Positive, Mirroring, Double Copy, Repeat Copy, Image Shift – Front/Rear/Left/Right (0 to +/- 200 mm by 1 mm steps), Preset Stamps, User Preset Stamps, Data Stamps, Page Stamp

Print Support

Controller Board Embedded
CPU Calpella 1.06 GHz
Print Speed 6.7 ppm D-size, 3.3 ppm E-size
Print Resolution Up to 600 dpi
Print Drivers Adobe® PostScript3, HDI (AutoCAD)
Supported File Formats HP-GL, HP-GL2, HP-RTL, TIFF, CALS, JPEG, PostScript, PDF, MS Office® , DWG/DWF
Font European 136 fonts (PS3)
Network Interface Standard: Ethernet 10/100BASE-TX, Optional: Wireless LAN IEEE 802.11a/g/n
Network Protocol TCP/IP, UDP/IP, ICMP/IP
Supported OS Windows XP/Vista/7/8/8.1/2003 Server/2008 Server/2008R2 Server/2012 Server/2012R2 Server, Mac OS (10.7 or later)
Printer Features Auto Paper Select, Pen Setting, Media Selection, Stamp Setting, Roll Select, Language Setting, Set-up Launcher, Output Tray Select, Online Help Menu, Multiple Print Sets, Combine Images, Locked Print Document Server, Sample Print, Remote Print via Internet, Magnification, Mirror Setting, Border Setting, Set X and Y Axis, Transparency Mode, Delete After Printing, Engine Status Monitor, Encryption, PDF Batch Print
Supported Languages English, Brazilian Portuguese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Romanian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish
Read more

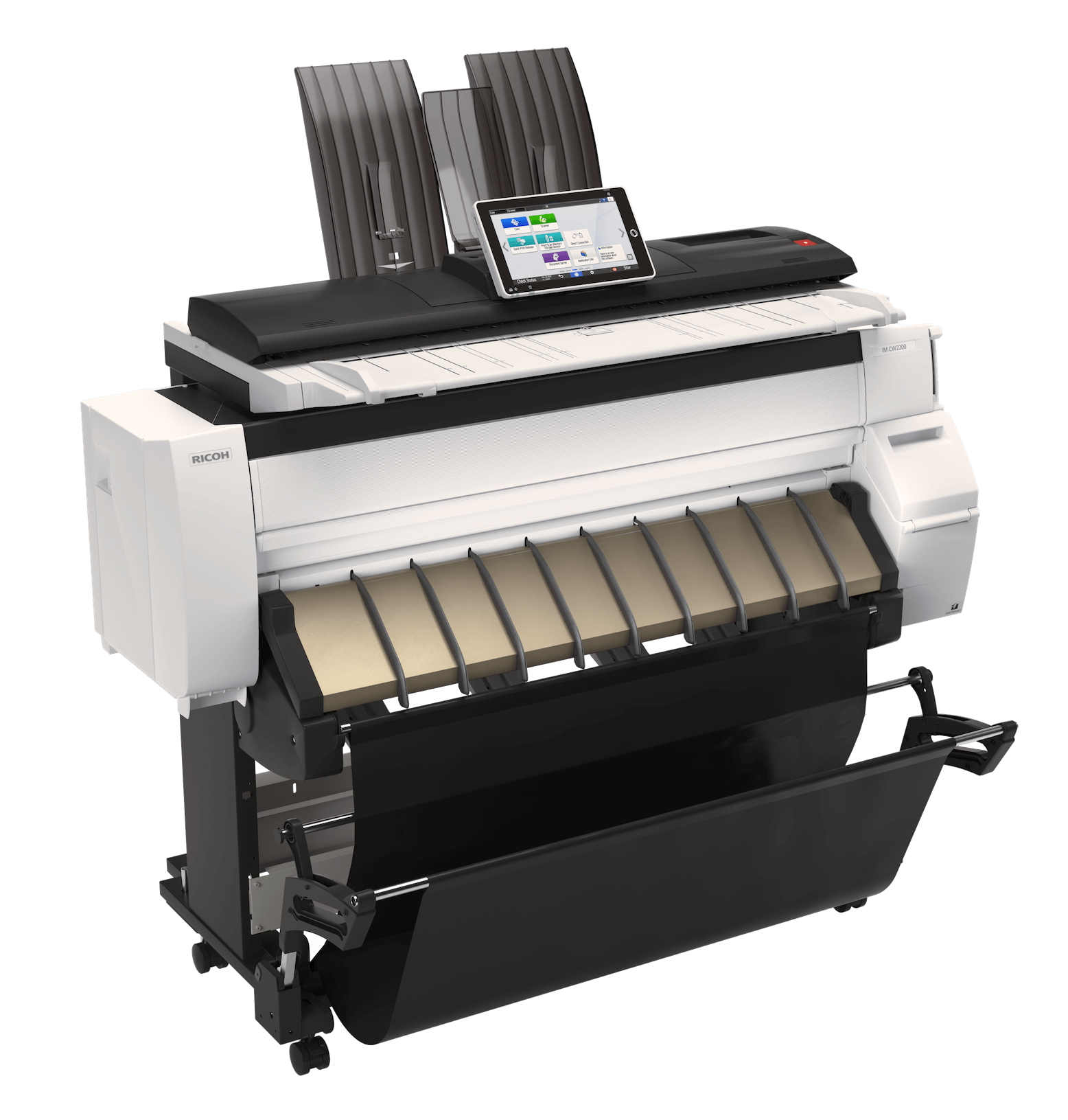

Ricoh IM CW2200

February 3, 2026By admin

Ricoh IM CW2200

Set your business apart with precision, productivity and high-quality color capabilities
  • Rely on advanced imaging technology to deliver your ideas and designs in full-color with crisp text and fine lines.
  • Perform tasks faster with an intuitive 10.1” Smart Operation Panel.
    Get the job done where and when it needs to happen with cloud connectivity and mobile support.
  • Benefit from the automatic paper roll setting and fast print speeds across multiple media types (2.1 ppm in color and 3.8 ppm in black & white).
  • Ensure sensitive information stays protected with the latest security features.
Request Quote
Download Brochure

Product Highlights

Deliver what the project demands
From technical drawings, detailed maps and planograms to rich CAD drawings and blueprints, achieve wide-format output that can exceed expectations and capture new opportunities. Our waterproof GEL-Jet™ technology uses inks that are smudge free and UV resistant. Your prints will remain durable and viewable on-site, despite weather conditions.

Details matter
Enhance sophistication at every level of planning and development with the reliable IM CW2200 and IP CW2200. Present vibrant drawings, razor-sharp lines and 3D renderings with up to 1200 x 1200 dpi print resolution. Confidently capture and share collaboration notes and precise colors with 600 x 600 dpi copy and scan resolutions (IM CW2200 only). Use the preview function to ensure accuracy before printing, sharing or storing.

Make complex simple
The IM CW2200 and IPCW2200 have the power to streamline operations and keep teams in sync. Store up to 3,000 files on the Document Server. Integrate seamlessly with cloud-based solutions. Support mobile workers with the RICOH Smart Device Connector app. Scan-to (IM CW2200 only) and print from a USB device or SD Card. Create intelligent workflows with shortcut icons, folders and more.

Specifications

Copying/Printing Process On-demand Piezo inkjet system (pigment-based ink)
First Copy Time from Standby mode IM CW2200: A0 SEF: B/W: high speed copy: 51 sec., standard: 71 sec.
IM CW2200: A0 SEF: full colour: high speed copy: 81 sec., standard: 155 sec.
IM CW2200: A1 LEF: B/W: high speed copy: 29 sec., standard: 41 sec.
IM CW2200: A1 LEF: full colour: high speed copy: 53 sec.
standard: 84 sec.
Resolution 600 x 600 dpi
Grayscale Scanning IM CW2200: Yes
Zoom IM CW2200: 25% to 400% by 0.1% increments
Multiple Copies IM CW2200: 1 to 99
Memory Capacity 4 GB
Hard Disk Drive IM CW2200: 320 GB (shared with copier/printer/scanner)
Original Feed 1 Sheet
Original Scan Size IM CW2200: Minimum: 8.5 – 8.5”, Maximum: 36 – 590”
Original Paper Weight Maximum Roll Feeder: 36” width, 1,299” length
Maximum Bypass: 36” width, 78.7” length
Output Paper Size Maximum Roll Feeder: 914.4 mm width, 33,000 mm length
Maximum Bypass: 914.4 mm width, 2,000 mm length
Output Paper Weight Roll Paper: 0.068 – 0.2 mm (51 – 190 g/m²)
Cut Sheet: 0.068 – 0.4 mm (51 – 220 g/m²)
Reproduction Ratio IM CW2200: Engineer (inch): 25%, 32.4%, 50%, 64.7%, 129.4%, 200%, 258.8%, 400%
Paper Feeding Capacity IM CW2200: Width: 297 – 914 mm, 11″ – 36″, Bypass: 1 sheet
Power Source 120 – 127 V, 3.6 A (max.), 60 Hz
Max Power Consumption IM CW2200: 180W
IP CW2200: 160W
Dimensions WxDxH IM CW2200: 54.5” x 26.6” x 48” (1,384 x 675 x 1,220 mm)
IP CW2200: 54.5″ x 26.0″ x 44.0″ (1,384 x 660 x 1,117 mm)
Weight IM CW2200: 265 lbs. (120kg)
IP CW2200: 220 lbs. (100kg)

Print Support

Controller Board Embedded
CPU 1.6 GHz
Print Resolution Speed priority (drawing): 600 x 300 dpi
Standard: 600 x 600 dpi
Quality priority: 600 x 600 dpi (Quality priority mode for only coated paper) film (matted) and special paper: 1200 x 1200 dpi
Print Drivers Adobe® Postscript®
Font European 136 fonts (PS3)
Network Interface 100 base-TX/10 base-T Ethernet, 10/100/1000 base-TX, USB 2.0, USB Host
Network Protocol TCP/IP (IPv4, IPv6)
Supported OS Win 8.1/10 (32/64bit), Win 11, Server 2012/R2
Server2016/2019/2022, MacOS 10.14 or later
Citrix XenApp 7.15 LTSR, VirtualApps/Desktops 2012 or later

Cloud Solutions



RICOH Smart Integration Solutions Get your files to the right place, in the right format, with the right file name with document management workflow software. Compatible with Microsoft 365 SharePoint and OneDrive or Google Drive.
